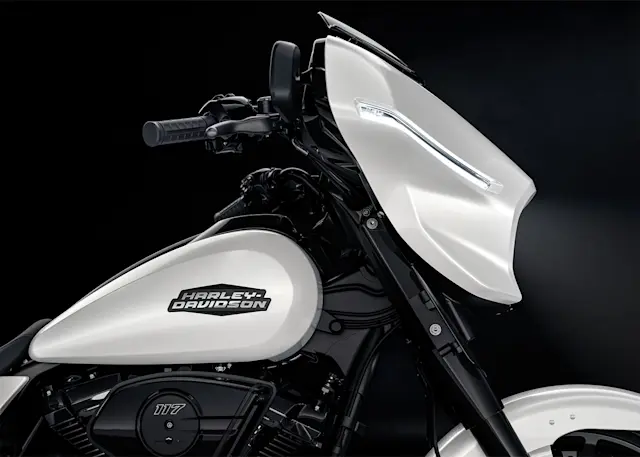

The iconic Batwing fairing has been designed with computational fluid dynamics (CFD) to improve aerodynamics and overall rider comfort, as well as visual flow.

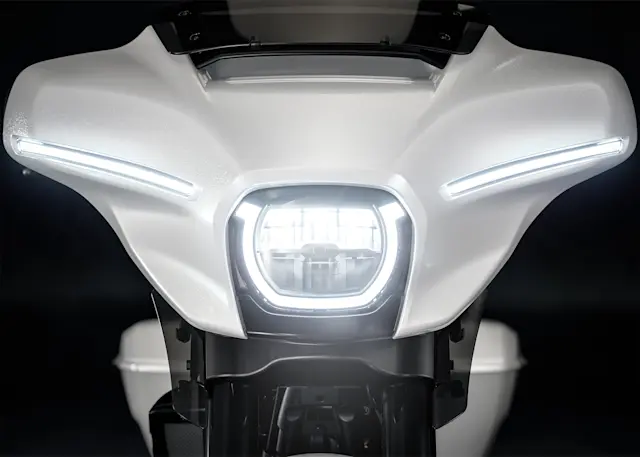

LED signature lighting is integrated into the bodywork, providing on-road visibility and creating a sleek, seamless visual flow.

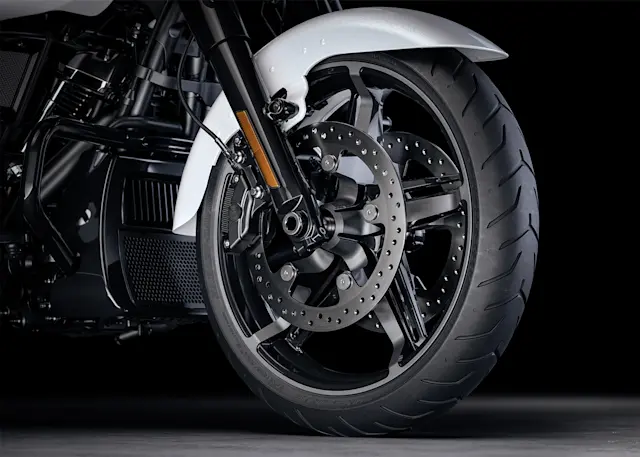

457 mm in the rear and 483 mm in the front, contrast-cut wheels give the Street Glide a powerful stance and modern style while providing excellent on-road performance.

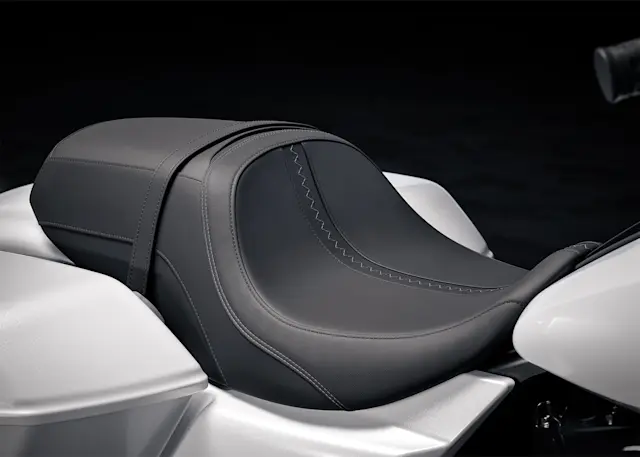

A one-piece seat design complements the Street Glide’s overall silhouette while improving long-mile comfort.
Available in nine top-tier paint options, including three Factory Custom paint schemes. Whiskey Firestorm and Midnight Firestorm feature classic hot-rod flames, while Mystic Shift changes from gunmetal to purple to blue, and finally to an almost orange in full sunlight.
Big V-twin power without the heat. Equipped with liquid-cooled heads and a discrete center-mounted radiator, it ensures efficient cooling even on the hottest rides.
Easily adjust preload for passenger or luggage, maximizing comfort and performance in every setting.

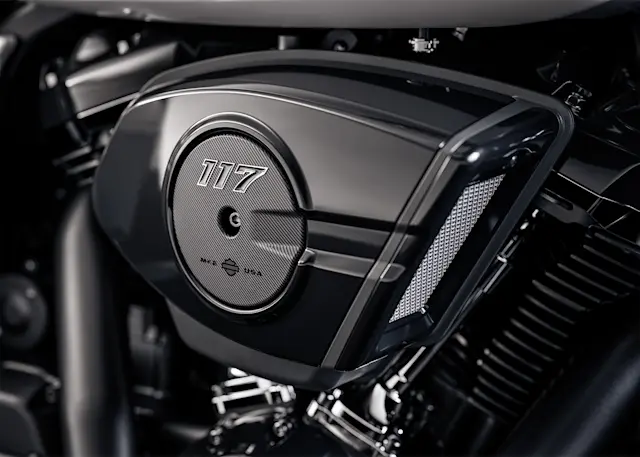

High-performance touring intake increases internal volume for improved airflow and engine performance.

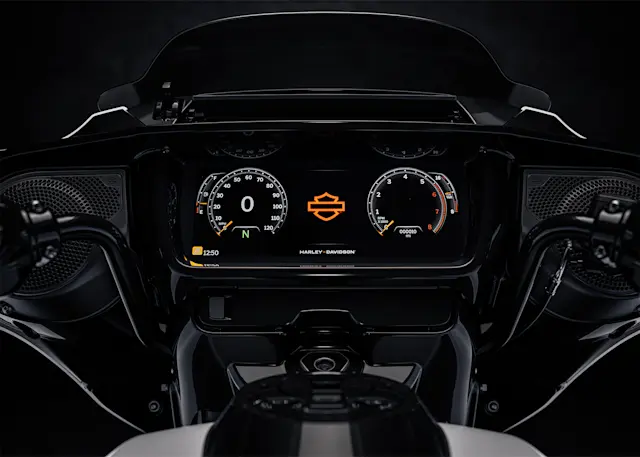

The crystal-clear, 312 mm touchscreen color TFT display puts navigation and infotainment at your fingertips.

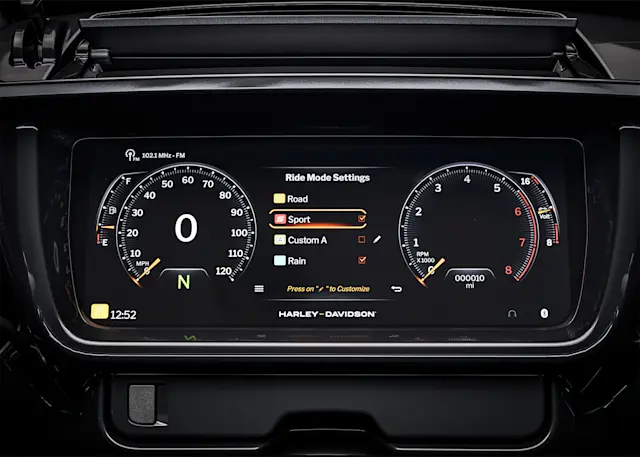

Three pre-programmed ride modes allow you to change the Street Glide's personality with the push of a button. Change from Road to Sport to Rain, or use the customizable mode to dial in your exact tuning preference.

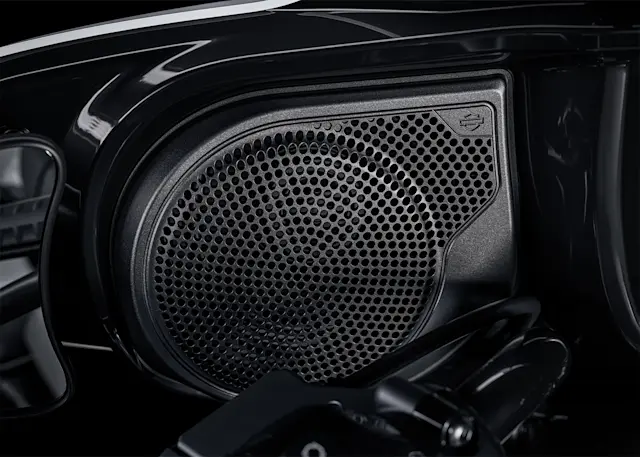

The deep lows, clean mids, and crips highs of your favorite songs play through fairing-mounted speakers, powered by a 200-watt, four-channel amplifier rated at 50 watts per channel.
| BILLIARD GRAY | 1,628,000 THB |
|---|---|
| Vivid Black | 1,640,000 THB |
| Color | 1,646,000 THB |
| Premium Color | 1,646,000 THB |
| Custom | 1,677,000 THB |
| Custom Two-Tone | 1,717,000 THB |
| Engine | Milwaukee-Eight™ 117 |
|---|---|
| Bore | 103.5 mm |
| Stroke | 114.3 mm |
| Displacement | 1,923 cc |
| Compression Ratio | 10.3:1 |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
| EXHAUST | 2-1-2 dual exhaust with tapered mufflers |
| Length | 2,410 mm |
|---|---|
| Width | 975 mm |
| Seat Height, Unladen | 715 mm |
| Ground Clearance | 140 mm |
| Rake (steering head) (deg) | 26 |
| Trail | 170 mm |
| Wheelbase | 1,625 mm |
| TIRE, TYPE | Dunlop™ Harley-Davidson Series, bias blackwall front and rear |
| Tyres, Front Specification | 130/60B19 M/C 61H |
| Tyres, Rear Specification | 180/55B18 M/C 80H |
| Fuel Capacity | 22.7 l |
| Oil Capacity (w/filter) | 4.7 l |
| Weight, In Running Order | 368 kg |
| Luggage Capacity -Volume | 0.069 m3 |
| ENGINE TORQUE TESTING METHOD | EC 134/2014 |
|---|---|
| Engine Torque | 175 Nm |
| Engine Torque (rpm) | 3,500 |
| HORSEPOWER | 107 HP / 80 kW @ 5020 rpm |
| Lean Angle, Right (deg.) | 32 |
| Lean Angle, Left (deg.) | 32 |
| FUEL ECONOMY TESTING METHOD | EU 134/2014 |
| FUEL ECONOMY | 6 l/100 km |
| CO2 EMISSIONS TESTING METHOD | EU 134/2014 |
| CO2 EMISSIONS | 143 g/km CO2 |
| Primary Drive | Chain, 34/46 ratio |
|---|---|
| Gear Ratios (overall) 1st | 9.593 |
| Gear Ratios (overall) 2nd | 6.65 |
| Gear Ratios (overall) 3rd | 4.938 |
| Gear Ratios (overall) 4th | 4 |
| Gear Ratios (overall) 5th | 3.407 |
| Gear Ratios (overall) 6th | 2.875 |
| FRONT FORK | 49mm (1.9 in) Dual Bending Valve |
|---|---|
| REAR SHOCKS | 3 in. (76.2 mm) Dual Outboard Emulsion with Preload Adjustability |
| Wheels, Front Type | Cast aluminum |
| Wheels, Rear Type | Cast aluminum |
| BRAKES, CALIPER TYPE | 32 mm, 4-piston fixed dual axially mounted front, and single axially mounted rear |
| BRAKES, ROTOR TYPE | Dual floating rotors (front), fixed rotor (rear) |
| LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS | Headlamp/Tail/Stop/Front Signal Lights: LED |
|---|---|
| Gauges | Digital gauges integrated within the display |
| INFOTAINMENT SYSTEM | Skyline™ OS |
|---|---|
| SCREEN SIZE | 312 mm |
| TYPE | Full Color TFT |
| WATTS PER CHANNEL | 50 |
| SPEAKERS | 2 |
| SPEAKER SIZE | Two 5.25 in. (133 mm) fairing speakers |
| AM | Standard |
| FM | Standard |
| SD CARD, FLASH DRIVE AND MP3 – VIA USB CONNECTION | Supported |
| LANGUAGES | Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese |
| HANDS-FREE MOBILE PHONE – VIA BLUETOOTH | Standard |
| VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY | Phone dependent |
| VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION | Danish, English (UK/USA default), French (Canada/France), German Italian, Spanish (Mexico/Spain), Swedish |
| RIDER/PASSENGER INTERCOM | Rider and passenger headsets sold separately; VOX is available for H-D headsets |
| VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) | Standard |
| TEXT-TO-SPEECH (TTS) LANGUAGES | Same as Languages list |
| USB | USB-C/MTP/Smartphone will work with any phone which has proper adapters to the connection located in the inner fairing storage |
| PHONE CONNECTIVITY | Apple CarPlay (wireless or wired) |
| BLUETOOTH | Phone/Media Player, Headset |
| ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
|---|---|
| ELECTRONIC LINKED BRAKING (ELB) | Included |
| TRACTION CONTROL SYSTEM (TCS) | Included |
| DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
| VEHICLE HOLD CONTROL (VHC) | Included |
| TIRE PRESSURE MONITORING SYSTEM (TPMS) | Included |
| CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS) | Included |
| CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB) | Included |
| CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS) | Included |
| CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS) | Included |
หมายเหตุ / Remark
สเปคของสี ข้อมูลจำเพาะ และรูปภาพรถรุ่นต่างๆ อาจมีการเปลี่ยนแปลง และอาจจะไม่ตรงกับที่มีจำหน่าย ณ ปัจจุบัน รายละเอียดเพิ่มเติมสามารถติดต่อแผนกขายได้ที่ 02-318-8488
The specification of the motorcycle and pictures might be changing and different from the currently available in the market. For more update details please contact out sale staff at 02-318-8488 Ext. 101
