An all-new, one-piece seat lowers the rider’s height for easier mounting and confident footing at stops. Its shape supports aggressive cornering while ensuring comfort and control.
Street-style lower fender hugs the Michelin™ Scorcher Sport tire for a sleeker, more aerodynamic design.
From the lightweight muffler to the front cylinder, the blacked-out powertrain is raw and aggressive, but also subtle and understated

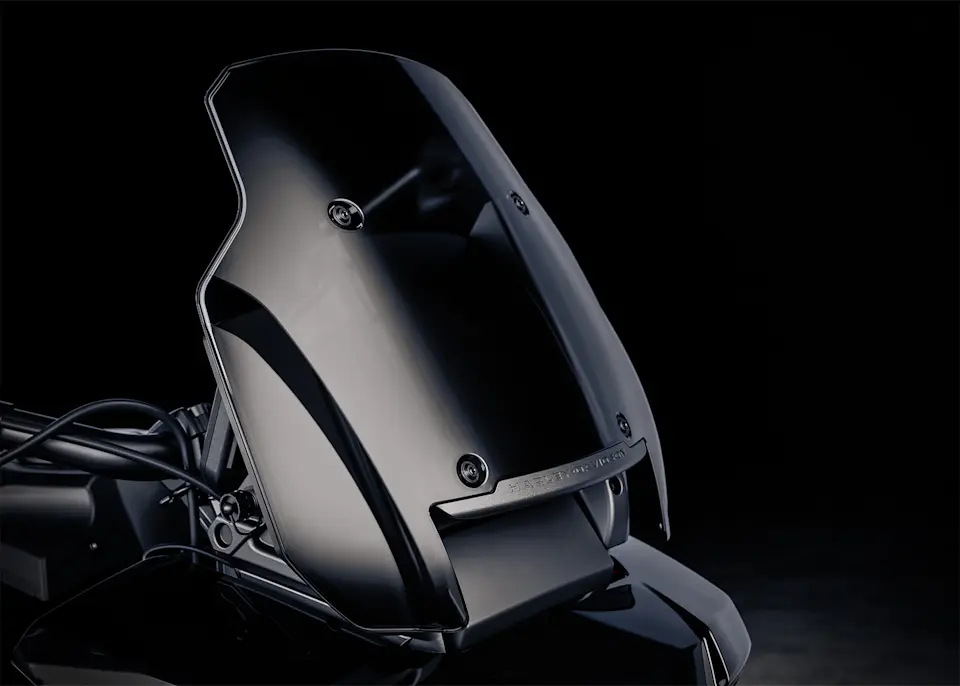

Low-profile smoked windshield design slims up the overall profile while still providing upright body coverage.
Iconic Adventure Sport bike design, with a large fuel tank to go the distance, meets street-savvy performance for when the pavement calls.
The liquid-cooled Revolution Max 1250 has a broad powerband with 112 kW and 127 Nm of torque at its peak. Integrated into the chassis as a load-bearing element, this engine not only shaves off weight but also improves rigidity for a more responsive ride.
The 432 mm cast-aluminum wheels are built for fast handling and come stock with Michelin Scorcher Sport tires, boosting your street performance for sharper, more responsive rides.
Standard on North American models, Adaptive Ride Height (ARH) drops up to one inch in a stopped position, allowing you to mount or dismount the Pan America 1250 ST with ease and confidence.
Lowered suspension drops the center of gravity and eliminates unneeded ground clearance for optimal road performance. SHOWA™ Balance Free 47mm forks and a SHOWA Balance Free monoshock feature electronically adjustable pre-load and manually adjustable compression and rebound.
Dual front Brembo Monoblock radially mounted four-piston calipers and hub-mounted 320mm brake rotors provide incredible stopping power with direct lever feel, while trailing in the rear are a single-piston Brembo caliper and 280mm rotor.
Click through the gears, up and down, without clutching or worrying about damaging your transmission. Quick, smooth shifts are achieved with little more than a tap of the foot, optimizing acceleration and keeping your focus on the road.
| BILLIARD GRAY | 874,000 THB |
|---|---|
| Vivid Black | 874,000 THB |
| Premium Color | 874,000 THB |
| Engine | Revolution™ Max 1250 |
|---|---|
| Bore | 105 mm |
| Stroke | 72.3 mm |
| Displacement | 1,252 cc |
| Compression Ratio | 13.0:1 |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
| EXHAUST | 2-into-1-into-1; catalyst in header |
| Length | 2,240 mm |
|---|---|
| Width | 895 mm |
| SEAT HEIGHT, UNLADEN | 825 mm |
| Ground Clearance | 170 mm |
| Rake | 25 |
| Trail | 95 mm |
| Wheelbase | 1,580 mm |
| TIRE, TYPE | Michelin™Scorcher “Adventure”, Radial |
| Tyres, Front Specification | 120/70R17 58V |
| Tyres, Rear Specification | 180/55R17 73V |
| Fuel Capacity | 21.2 l |
| Oil Capacity (w/filter) | 4.5 l |
| Weight, In Running Order | 246 kg |
| ENGINE TORQUE TESTING METHOD | EC 134/2014 |
|---|---|
| Engine Torque | 127 Nm |
| Engine Torque (rpm) | 6,750 |
| HORSEPOWER | 150 HP / 112 kW @ 9000 rpm |
| Lean Angle, Right (deg.) | 37 |
| Lean Angle, Left (deg.) | 37 |
| FUEL ECONOMY TESTING METHOD | EU 134/2014 |
| FUEL ECONOMY | 5.7 l/100 km |
| CO2 EMISSIONS TESTING METHOD | EU 134/2014 |
| CO2 EMISSIONS | 133 g/km CO2 |
| Primary Drive | Gear, 49/89 ratio |
|---|---|
| Gear Ratios (overall) 1st | 13.11 |
| Gear Ratios (overall) 2nd | 9.687 |
| Gear Ratios (overall) 3rd | 7.509 |
| Gear Ratios (overall) 4th | 6.057 |
| Gear Ratios (overall) 5th | 5.08 |
| Gear Ratios (overall) 6th | 4.436 |
| FRONT FORK | 47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps |
|---|---|
| REAR SHOCKS | Linkage-mounted monoshock with compression, rebound and hydraulic spring preload adjustability |
| Wheels, Front Type | Aluminum cast, satin black |
| Wheels, Rear Type | Aluminum cast, satin black |
| BRAKES, CALIPER TYPE | Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper |
| BRAKES, ROTOR TYPE | Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor |
| LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS | Headlamp: Daymaker™ Adaptive LED Headlamp; Tail/Stop: All LED Tail/Stop lamp with signature tail lighting; Front Signal Lights: LED Bullet Turn Signals |
|---|---|
| Gauges | 6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY) |
| SCREEN SIZE | 173 mm |
|---|---|
| TYPE | Color TFT w/ Touch |
| HEADSET SPECIFICATION (IF EQUIPPED) | Bluetooth |
| LANGUAGES | Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese |
| HANDS-FREE MOBILE PHONE – VIA BLUETOOTH | Standard |
| VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY | Phone dependent |
| VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION | Phone dependent |
| RIDER/PASSENGER INTERCOM | Headset function only |
| VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) | TPMS, Engine temp, Battery Voltage, Ambient Air Temp |
| TEXT-TO-SPEECH (TTS) LANGUAGES | Phone dependent |
| USB | Charging and Instrument update, USB-C, 5V, 3A |
| BLUETOOTH | Phone/Media Supported |
| ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
|---|---|
| ELECTRONIC LINKED BRAKING (ELB) | Included |
| TRACTION CONTROL SYSTEM (TCS) | Included |
| DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
| VEHICLE HOLD CONTROL (VHC) | Included |
| TIRE PRESSURE MONITORING SYSTEM (TPMS) | Included |
| WHEEL LIFT MITIGATION | Included |
| CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS) | Included |
| CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB) | Included |
| CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS) | Included |
| CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS) | Included |
| ENHANCED LIFT MITIGATION | Included |
หมายเหตุ / Remark
สเปคของสี ข้อมูลจำเพาะ และรูปภาพรถรุ่นต่างๆ อาจมีการเปลี่ยนแปลง และอาจจะไม่ตรงกับที่มีจำหน่าย ณ ปัจจุบัน รายละเอียดเพิ่มเติมสามารถติดต่อแผนกขายได้ที่ 02-318-8488
The specification of the motorcycle and pictures might be changing and different from the currently available in the market. For more update details please contact out sale staff at 02-318-8488 Ext. 101
