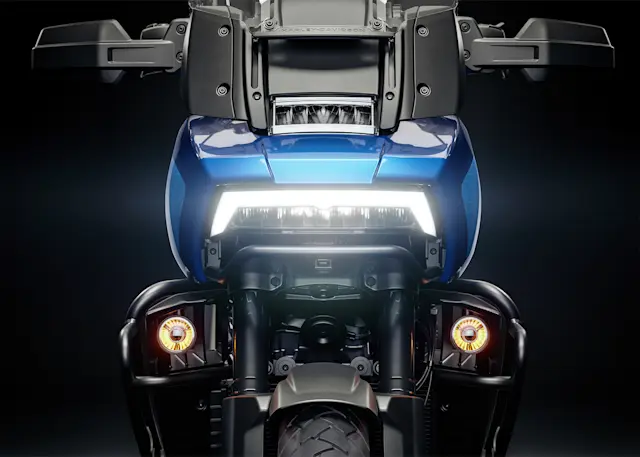

The Adaptive Daymaker™ headlight casts a broad, pure white light, ensuring your ride continues well after dark. With lean angle-controlled bank lighting, its 12 LED spotlights adjust to the bike's lean, providing curb-to-curb visibility and enhancing your view through corners.
Quintessential Harley-Davidson design language translated to a fully capable ADV silhouette, the Pan America 1250 Special is utilitarian and brutish while remaining sleek and uniquely distinct.
Cast aluminum wheels come standard or opt for traditional laced wheels, designed to handle on-road and off-road conditions with ease.

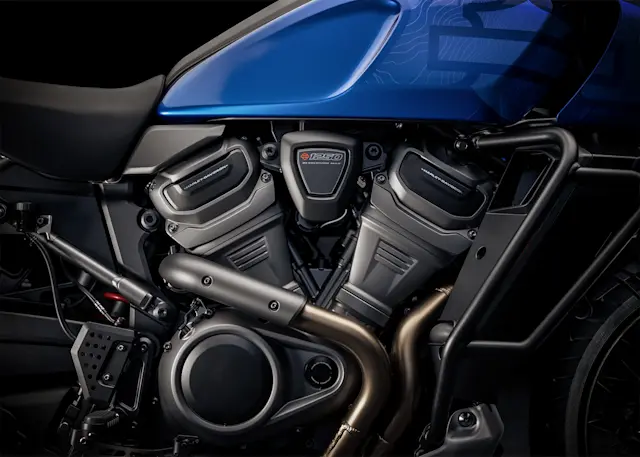

A high-revving, liquid-cooled V-twin puts out 150 horsepower (112 kW) with a wide, flexible powerband, and tunable on- and off-road Traction Control means that you get power to the ground, no matter what that ground looks like.

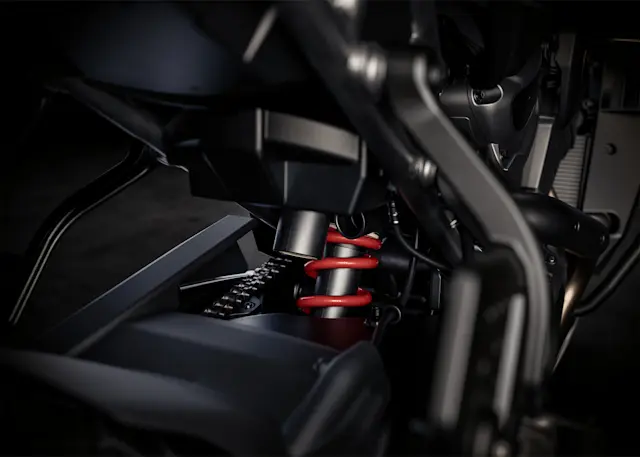

Electronically adjustable semi-active suspension works without you thinking about it, maintaining ideal sag through continuous preload adjustment.

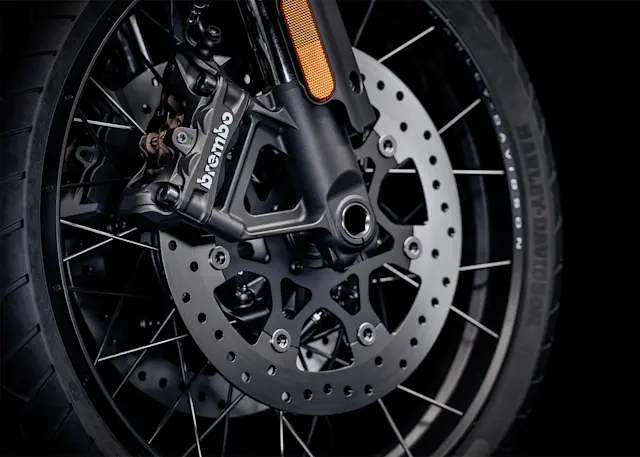

Brembo brakes, front and rear, provide excellent feeling and incredible stopping power, paired with Cornering Rider Safety Enhancements that are tunable for on- and off-road riding.
Battery charging at idle is now more efficient, and a larger battery enhances cold starts and provides extra power for accessories.

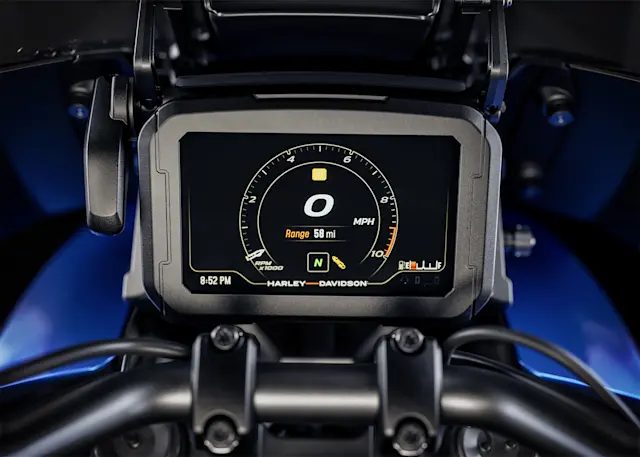

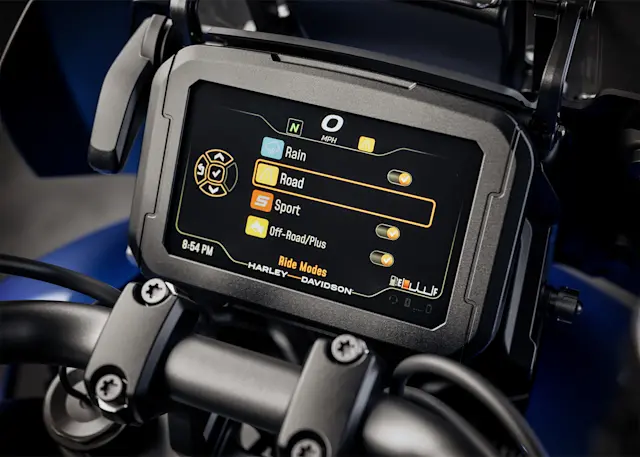

Key information is displayed on an easy-to-use touchscreen allowing for quick adjustments to Ride Mode, Bluetooth™ audio, Safety Enhancements, and more.
Adaptive Ride Height automatically adjusts the seat height as you ride, lowering at stops for easy footing and raising at speed for optimal ground clearance and comfort.
Nine selectable ride modes, including Road, Sport, Rain, Off-Road, and Off-Road Plus, tune performance and technology levels, enhancing your confidence and control both on and off the pavement.
An analog under-seat mechanism allows riders to adjust the seat height from 790 mm to 813 mm.
| BILLIARD GRAY | 896,000 THB |
|---|---|
| Vivid Black | 896,000 THB |
| Color | 896,000 THB |
| Two-Tone | 904,000 THB |
| Engine | Revolution™ Max 1250 |
|---|---|
| Bore | 105 mm |
| Stroke | 72.3 mm |
| Displacement | 1,252 cc |
| Compression Ratio | 13.0:1 |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) |
| EXHAUST | 2-into-1-into-1; catalyst in header |
| Length | 2,270 mm |
|---|---|
| Width | 975 mm |
| SEAT HEIGHT, UNLADEN | Low/High Seat Position: 850 mm/875 mm |
| Ground Clearance | 175 mm |
| Rake | 25 |
| Trail | 108 mm |
| Wheelbase | 1,585 mm |
| TIRE, TYPE | Michelin™Scorcher “Adventure”, Radial |
| Tyres, Front Specification | 120/70R19 60V |
| Tyres, Rear Specification | 170/60R17 72V |
| Fuel Capacity | 21.2 l |
| Oil Capacity (w/filter) | 4.5 l |
| Weight, In Running Order | 258 kg |
| ENGINE TORQUE TESTING METHOD | EC 134/2014 |
|---|---|
| Engine Torque | 125 Nm |
| Engine Torque (rpm) | 6,750 |
| HORSEPOWER | 150 HP / 112 kW @ 8750 rpm |
| Lean Angle, Right (deg.) | 42 |
| Lean Angle, Left (deg.) | 42 |
| FUEL ECONOMY TESTING METHOD | EU 134/2014 |
| FUEL ECONOMY | 5.5 l/100 km |
| CO2 EMISSIONS TESTING METHOD | EU 134/2014 |
| CO2 EMISSIONS | 127 g/km CO2 |
| Primary Drive | Gear, 49/89 ratio |
|---|---|
| Gear Ratios (overall) 1st | 13.11 |
| Gear Ratios (overall) 2nd | 9.687 |
| Gear Ratios (overall) 3rd | 7.509 |
| Gear Ratios (overall) 4th | 6.057 |
| Gear Ratios (overall) 5th | 5.08 |
| Gear Ratios (overall) 6th | 4.436 |
| FRONT FORK | 47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps. |
|---|---|
| REAR SHOCKS | Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping |
| WHEELS, OPTIONAL STYLE TYPE | Annodized aluminum tubeless laced |
| Wheels, Front Type | Aluminum cast, satin black |
| Wheels, Rear Type | Aluminum cast, satin black |
| BRAKES, CALIPER TYPE | Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper |
| BRAKES, ROTOR TYPE | Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor |
| LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS | Headlamp: Daymaker™ Adaptive LED Headlamp with 6-segment LED banking lamp; Tail/Stop: All LED rear lighting; Front Signal Lights: LED Bullet Turn Signals |
|---|---|
| Gauges | 6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable – phone pairing to access phone calls, music, navigation (H-D App ONLY) |
| SCREEN SIZE | 173 mm |
|---|---|
| TYPE | Color TFT w/ Touch |
| HEADSET SPECIFICATION (IF EQUIPPED) | Bluetooth |
| LANGUAGES | Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese |
| HANDS-FREE MOBILE PHONE – VIA BLUETOOTH | Standard |
| VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY | Phone dependent |
| VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION | Phone dependent |
| TEXT-TO-SPEECH (TTS) LANGUAGES | Phone dependent |
| RIDER/PASSENGER INTERCOM | Headset function only |
| VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) | TPMS, Engine temp, Battery Voltage, Ambient Air Temp |
| TEXT-TO-SPEECH (TTS) LANGUAGES | Phone dependent |
| USB | Charging and Instrument update, USB-C, 5V, 3A |
| BLUETOOTH | Phone/Media Supported |
| ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
|---|---|
| ELECTRONIC LINKED BRAKING (ELB) | Included |
| TRACTION CONTROL SYSTEM (TCS) | Included |
| DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
| VEHICLE HOLD CONTROL (VHC) | Included |
| TIRE PRESSURE MONITORING SYSTEM (TPMS) | Included |
| WHEEL LIFT MITIGATION | Included |
| CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS) | Included |
| CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB) | Included |
| CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS) | Included |
| CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS) | Included |
| ENHANCED LIFT MITIGATION | Included |
หมายเหตุ / Remark
สเปคของสี ข้อมูลจำเพาะ และรูปภาพรถรุ่นต่างๆ อาจมีการเปลี่ยนแปลง และอาจจะไม่ตรงกับที่มีจำหน่าย ณ ปัจจุบัน รายละเอียดเพิ่มเติมสามารถติดต่อแผนกขายได้ที่ 02-318-8488
The specification of the motorcycle and pictures might be changing and different from the currently available in the market. For more update details please contact out sale staff at 02-318-8488 Ext. 101
