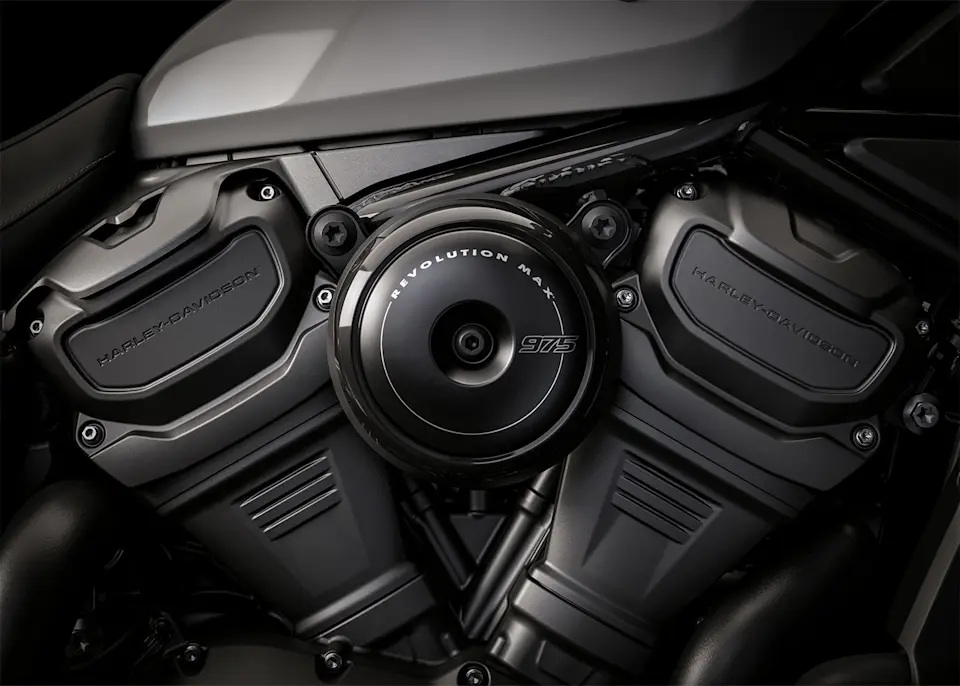

All-black finishes adorn the high-revving, liquid-cooled Revolution Max 975T powertrain, which puts out 66 kW @ 7500 rpm and 95 Nm of torque.

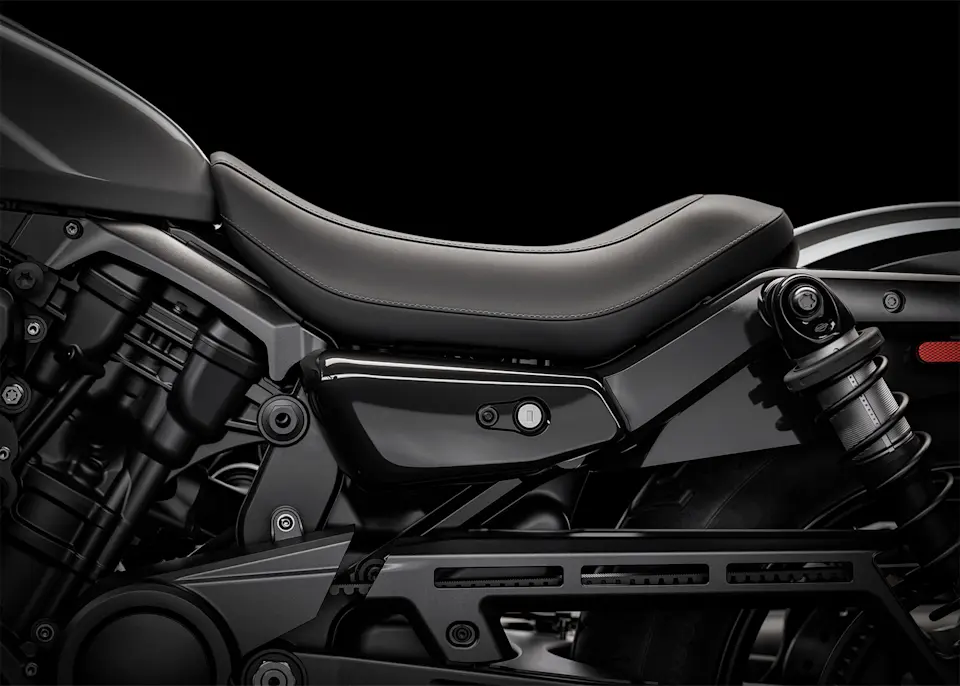

688 mm seat height means easier step-over, a lower center of gravity for improved handling, and more confident flat-footed stops.
With a load-bearing engine and under-seat gas tank, this bike sheds weight and centers mass for nimble handling and easy kickstand lift. At 221 kgs, it is one of our lightest and most agile motorcycles.

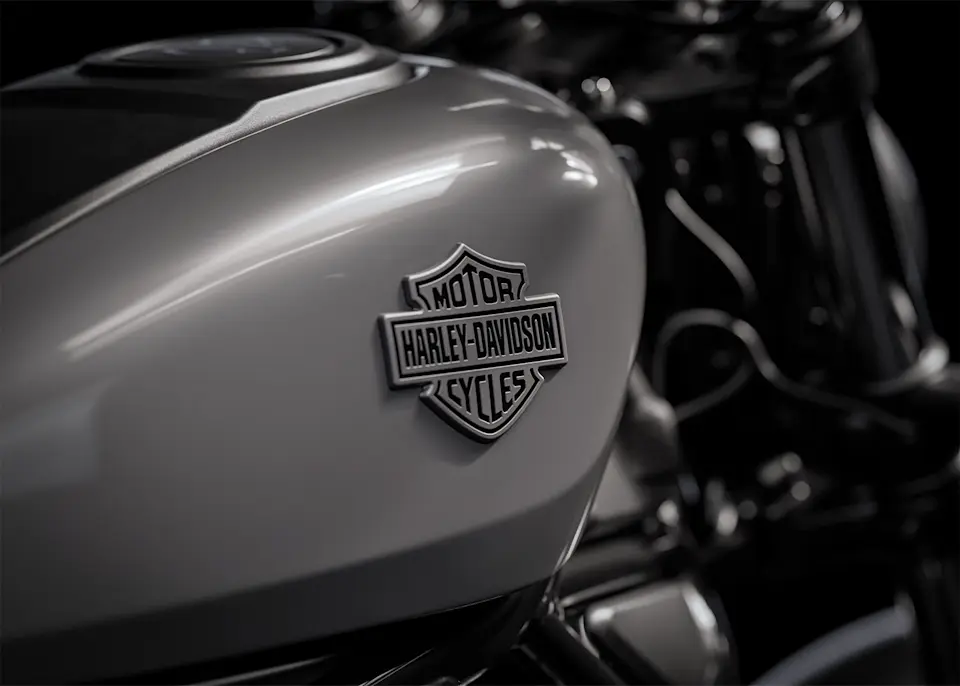

“Sportster™” is one of the most iconic names in motorcycling, and the Nightster keeps its spirit alive with classic styling, including a vintage tank medallion that nods back to the original form.

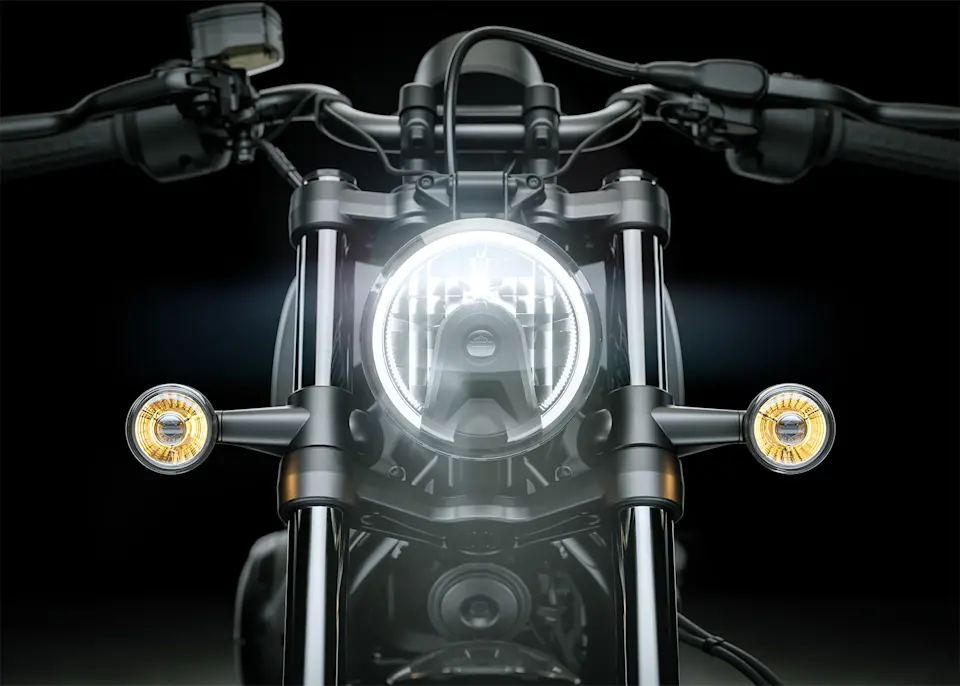

LED brake light and turn signals are bright and visible from a far distance, and an LED headlight shines a wide beam of bright white light across the whole road.

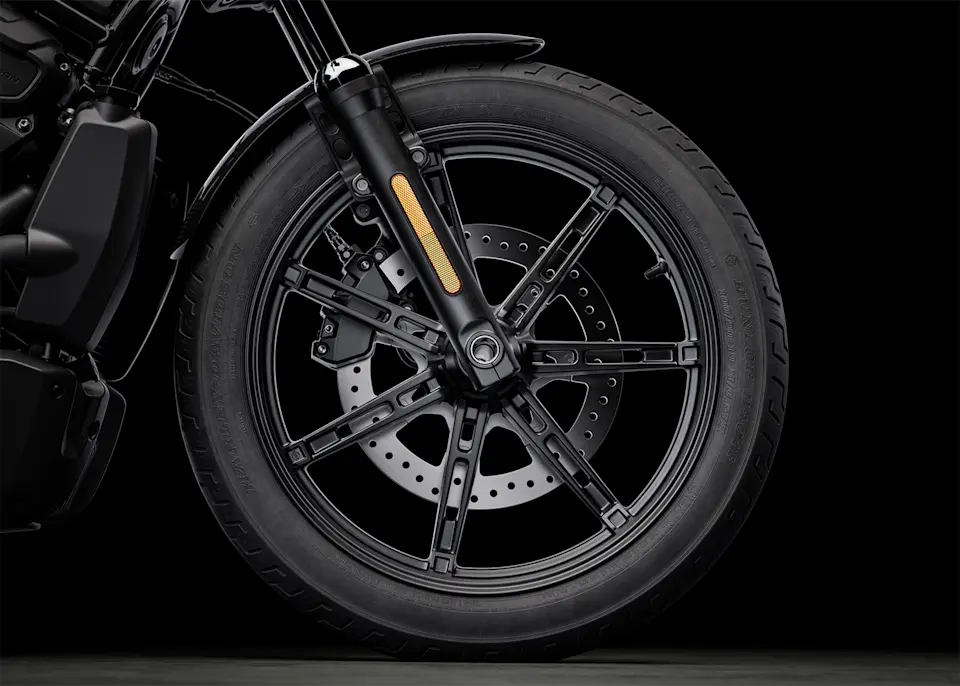

Cast aluminum seven-spoke wheels are high style and low maintenance, and they reduce unsprung weight for improved handling.

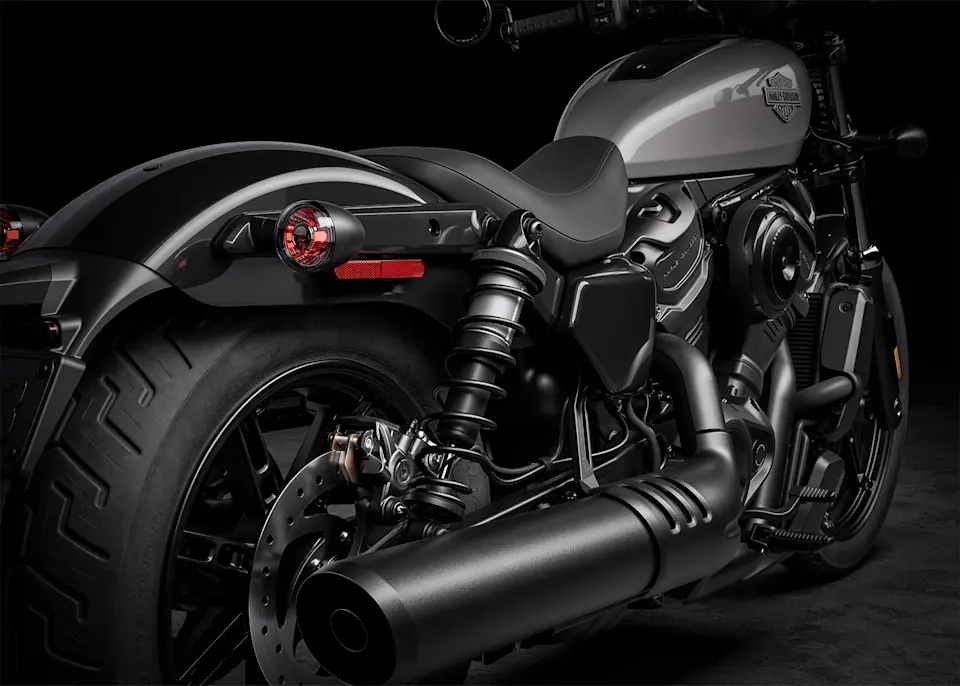

Dual outboard shocks and the traditional rear fender make it unmistakably Sportster™, while next generation performance takes the iconic name further than ever before.
A steel cover replaces the classic Sportster™ peanut tank and hides a high-performance downdraft intake beneath.

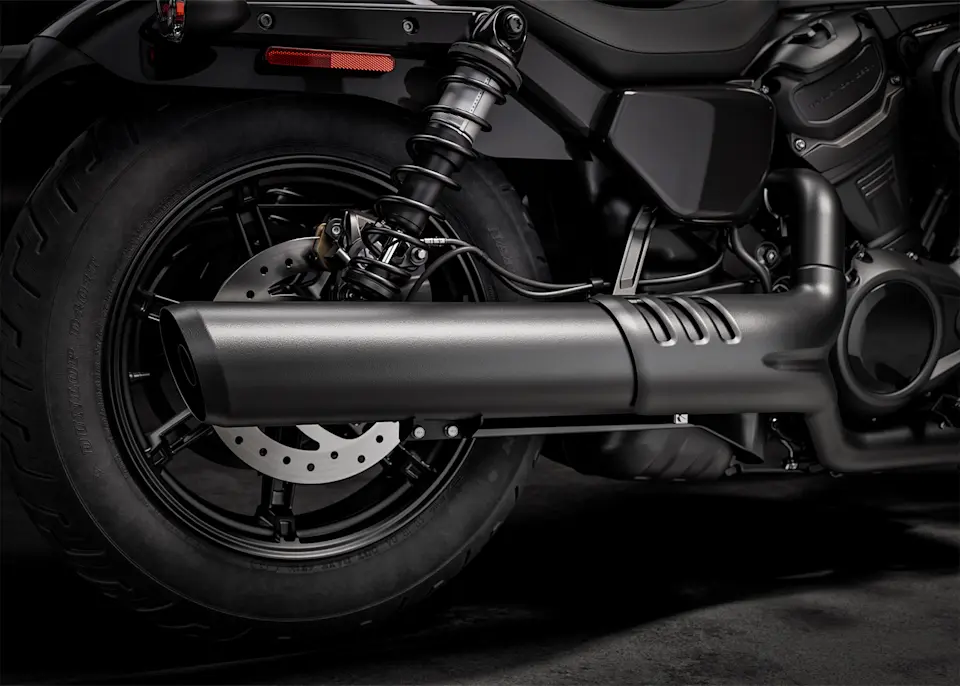

A high-performance, lightweight two-into-one exhaust system carries a traditional line with peak modern performance and tuned V-twin sound.

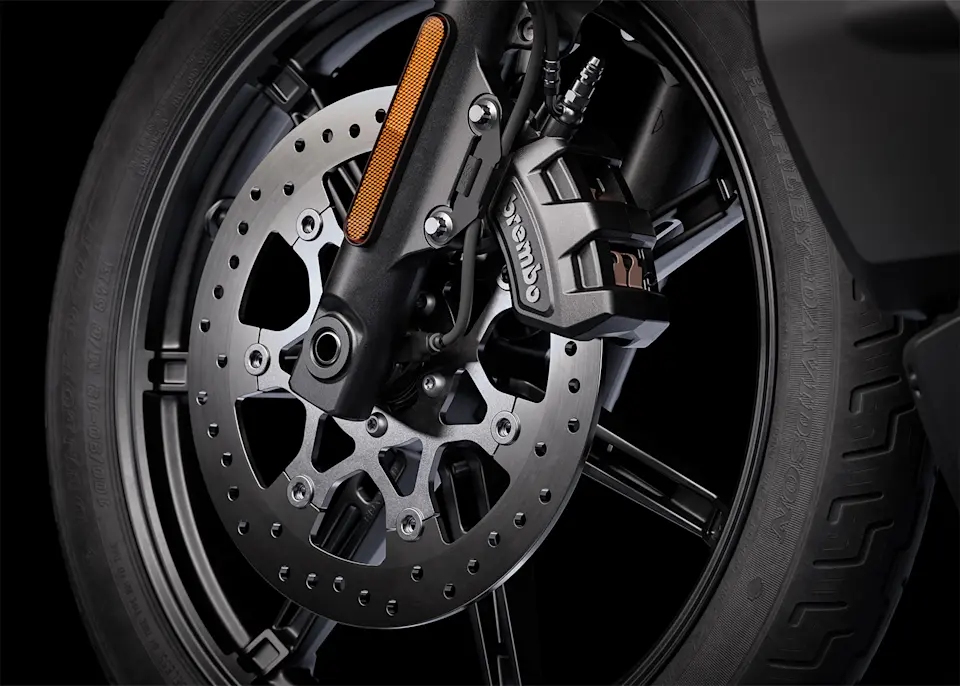

Premium Brembo four-piston caliper in the front and a single-piston in the rear, both mounted on floating brake rotors and tuned for outstanding feel and stopping performance.

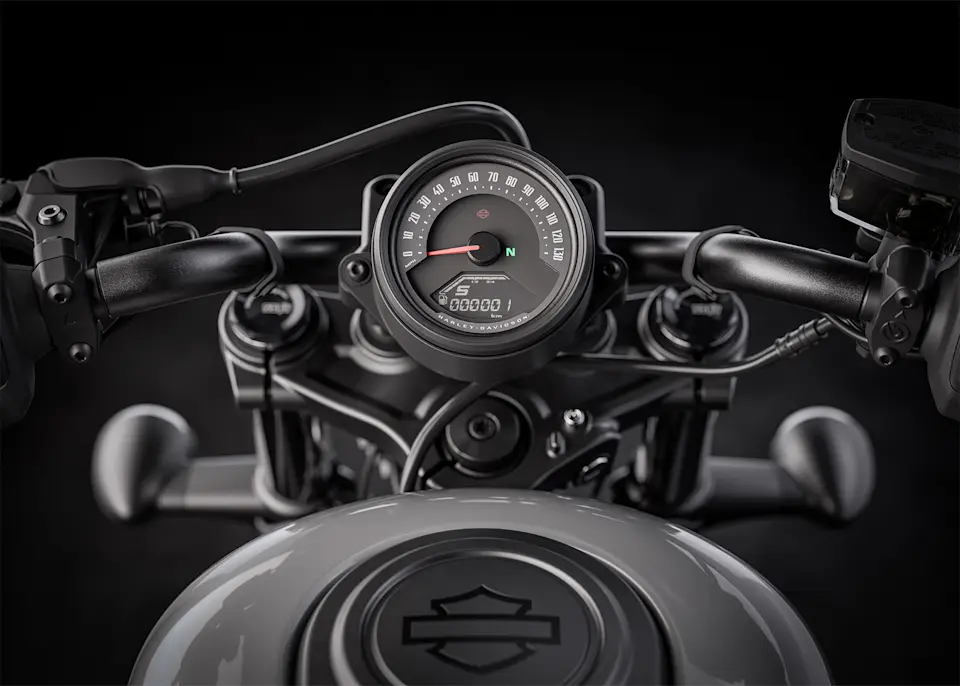

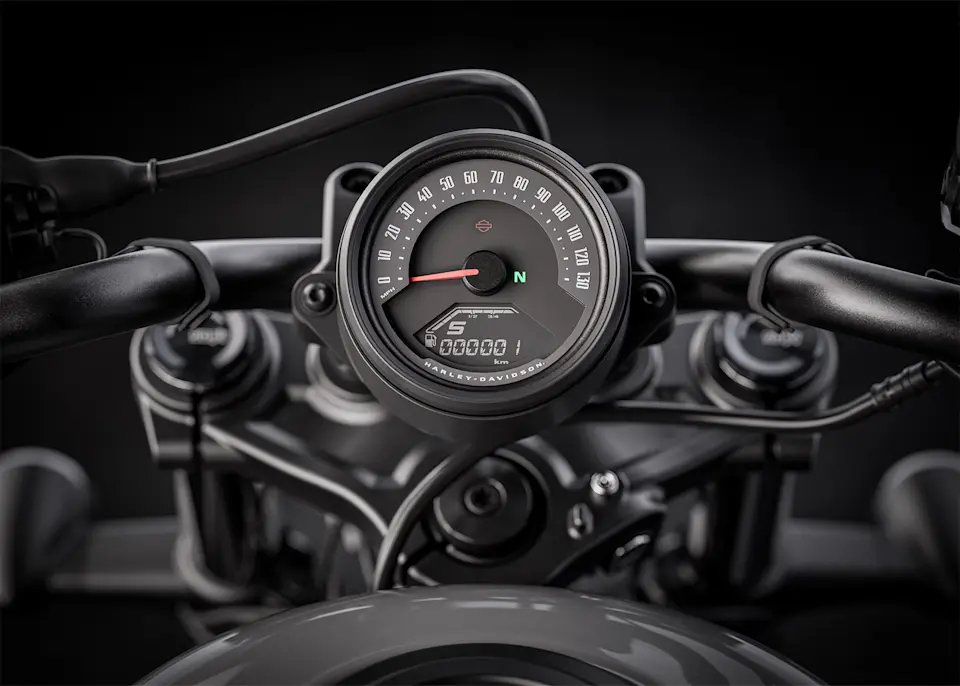

102 mm analog speedometer offers a classic, easy-to-read display, while the LCD screen below provides essential like Ride Modes. The Nightster features three pre-set Ride Modes (Road, Rain, Sport), allowing you to fine-tune your settings for peak engine performance.
The Nightster comes with three selectable Ride Modes (Road, Rain, Sport), allowing you to adjust your settings to get the best performance out of the engine.
| BILLIARD GRAY | 527,000 THB |
|---|---|
| VIVID BLACK | 533,000 THB |
| PREMIUM COLOR | 535,000 THB |
| Engine | Revolution™ Max 975T |
|---|---|
| Bore | 97 mm |
| Stroke | 66 mm |
| Displacement | 975 cc |
| COMPRESSION RATIO | 12:1 |
| FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
| EXHAUST | 2-into-1; catalyst in header |
| Length | 2,250 mm |
|---|---|
| Width | 840 mm |
| SEAT HEIGHT, UNLADEN | 705 mm |
| GROUND CLEARANCE | 110 mm |
| RAKE | 30 |
| TRAIL | 137 mm |
| WHEELBASE | 1,545 mm |
| TIRE, TYPE | Dunlop™ Harley-Davidson Series Bias Blackwall |
| TIRES, FRONT SPECIFICATION | 100/90-19 57H |
| TIRES, REAR SPECIFICATION | 150/80B16 77H |
| FUEL CAPACITY | 11.7 l |
| OIL CAPACITY (W/FILTER) | 4.5 l |
| WEIGHT, IN RUNNING ORDER | 221 kg |
| ENGINE TORQUE TESTING METHOD | EC 134/2014 |
|---|---|
| Engine Torque | 95 Nm |
| Engine Torque (rpm) | 5,750 |
| HORSEPOWER | 89 HP / 66 kW @ 7500 rpm |
| Lean Angle, Right (deg.) | 32 |
| Lean Angle, Left (deg.) | 32 |
| FUEL ECONOMY TESTING METHOD | EU 134/2014 |
| FUEL ECONOMY | 5.5 l/100 km |
| CO2 EMISSIONS TESTING METHOD | EU 134/2014 |
| CO2 EMISSIONS | 130 g/km CO2 |
| Primary Drive | Gear, 49/89 ratio |
|---|---|
| Gear Ratios (overall) 1st | 12.21 |
| Gear Ratios (overall) 2nd | 9.022 |
| Gear Ratios (overall) 3rd | 6.994 |
| Gear Ratios (overall) 4th | 5.641 |
| Gear Ratios (overall) 5th | 4.731 |
| Gear Ratios (overall) 6th | 4.131 |
| FRONT FORK | 41mm SHOWA™ Dual Bending Valve conventional forks. Aluminum fork triple clamps. |
|---|---|
| REAR SHOCKS | Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment. |
| Wheels, Front Type | Aluminum cast, satin black |
| Wheels, Rear Type | Aluminum cast, satin black |
| BRAKES, CALIPER TYPE | Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper |
| BRAKES, ROTOR TYPE | Front: single rotor, floating, hub – mounted; Rear: solid uniform expansion rotor |
| LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: All LED rear lighting; Front Signal Lights: LED Bullet Turn Signals |
|---|---|
| Gauges | 4-inch viewable round gauge area analog display with, Speedometer, L/R turn Indication, Traction Control Indication, Coolant Temperature Alert, ABS alert, Fog Lamp Indication, Battery Voltage Alert, High Beam Indicator, Low Fuel Indication, Rear-ABS Disabled Indication, Failure-Indication Alert, Neutral Position Indication, Low Tire Pressure indication, Check Engine Light indication, Oil Pressure Alert, Service Indication |
| SCREEN SIZE | 4″ Analog Instrument with Segmented LCD (102 mm) |
|---|---|
| TYPE | Analog display |
| LANGUAGES | English (default) |
| Vehicle Information Screen (Air temperature, oil pressure and EITMS) | Total Odometer (Selectable Miles or km), Trip A/B, Gear Position Indication, Fuel Range, 12/24 Hr Clock, Digital Tachometer, Segmented Fuel Level, Ride Mode Indication |
| ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
|---|---|
| TRACTION CONTROL SYSTEM (TCS) | Included |
| DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
หมายเหตุ / Remark
สเปคของสี ข้อมูลจำเพาะ และรูปภาพรถรุ่นต่างๆ อาจมีการเปลี่ยนแปลง และอาจจะไม่ตรงกับที่มีจำหน่าย ณ ปัจจุบัน รายละเอียดเพิ่มเติมสามารถติดต่อแผนกขายได้ที่ 02-318-8488
The specification of the motorcycle and pictures might be changing and different from the currently available in the market. For more update details please contact out sale staff at 02-318-8488 Ext. 101
